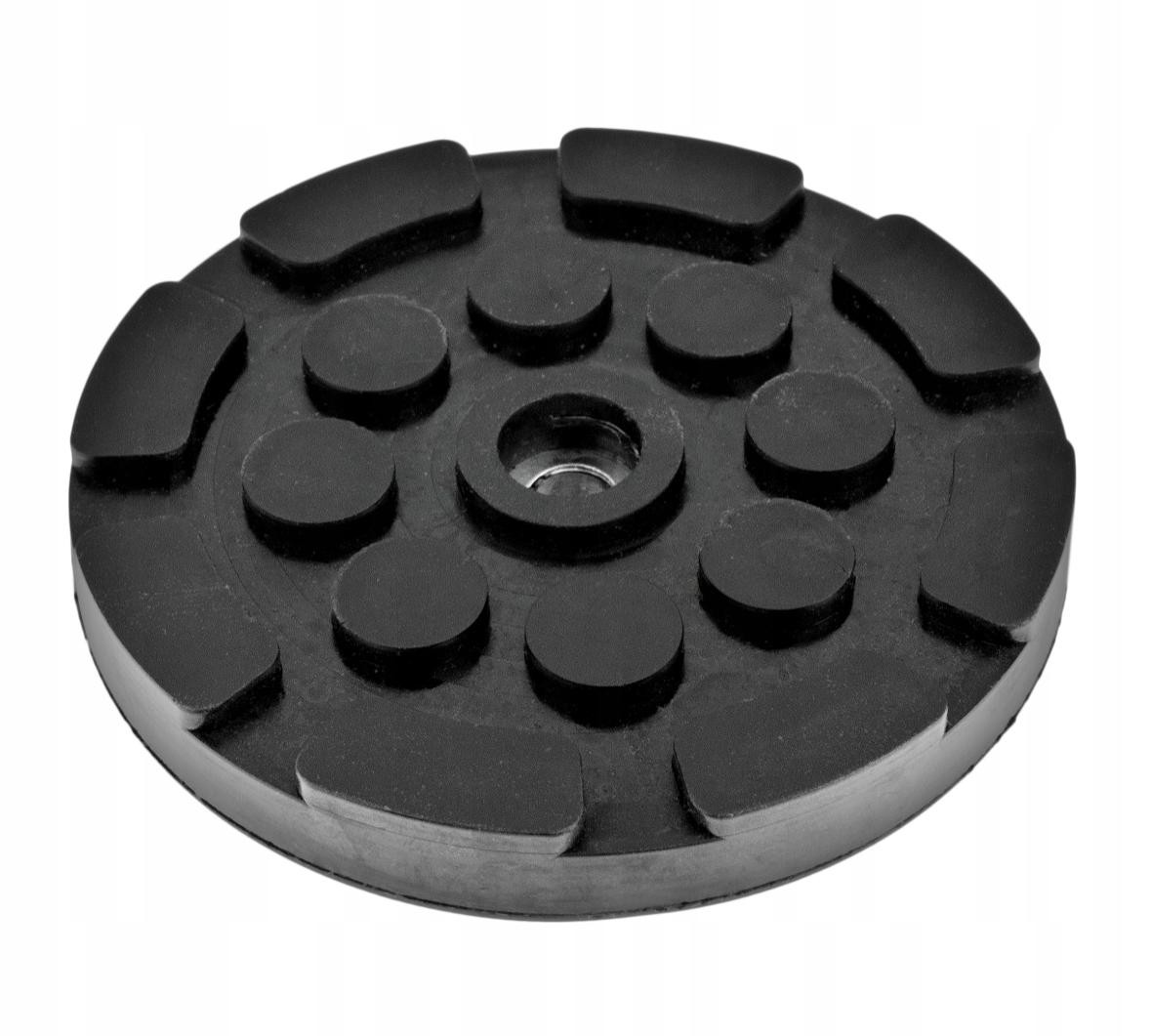

Rubber pad for SMART Pneumatic Baloon Air Jack

A round rubber pad designed as a replacement part for pneumatic balloon-type jacks from the SMART series. It is specifically intended for use with:

• SM-4A-4000 (4T)
• SM-6A-6000 (6T)

Made from high-quality rubber compound with enhanced resistance to compression, abrasion, and stretching, this pad ensures durability even under heavy and prolonged use. It is mounted directly to the jack’s top plate using a screw (typically included with the jack as standard equipment).

Its primary function is to protect the vehicle’s lift point from scratches and surface damage caused by direct contact with the metal plate. The rubber surface also improves grip and increases the stability of the lifted vehicle, helping to prevent slipping during operation.

Compatibility:
While designed as a replacement for SMART jacks, the pad can also be used with other models, provided that:

• the jack has a threaded hole in the top plate,
• the mounting screw and hole match the dimensions of the pad.

Other compatible models (when dimensions match):
Stix Tool: AP-4000 4T, APK-4000 4T, AP-3000 3T, APK-3000 3T
REDATS: 3T LS-220, 3T LS-230
MAR-POL 3.5T, TAGRED TA256 3.5T, MASTIFF MF180035 3.5T
KP TOOLS 3.5T, RELD 3T
BITUXX 3T, BASS BP-3415 3T, GEKO G02062 3T, KRAFT&DELE KD399 3T

Technical specifications:

• Outer diameter: 100 mm
• Height: 15 mm
• Mounting hole: 9 / 15 mm
