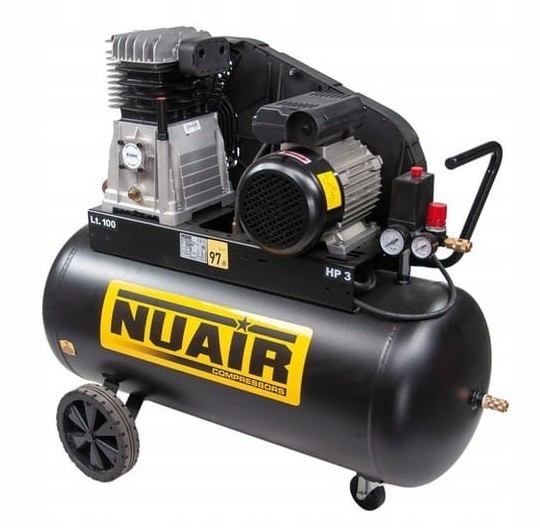

OIL COMPRESSOR NUAIR B2800B/100 CM3 100L 10 bar 330 l/min 400V

Equipped with a powerful, oil-lubricated B2800B pump with two cylinders and a single compression stage. The 3.0 HP motor with 400 V power supply ensures consistent and reliable performance even under heavy load. The large 100-liter tank allows for extended operation without frequent restarts, and the working pressure range of 8–10 bar makes it suitable for a wide variety of workshop and service applications. The compressor features a robust construction, low noise levels, and a stable 75% duty cycle.

GENERAL
TANK CAPACITY: 100 l
TYPE: oil-lubricated
MAX PRESSURE: 10 bar
DUTY CYCLE: S3/75%
OPERATING TEMPERATURE: 5–40°C
INTAKE CAPACITY: 330 l/min
OUTPUT CAPACITY: 300 l/min

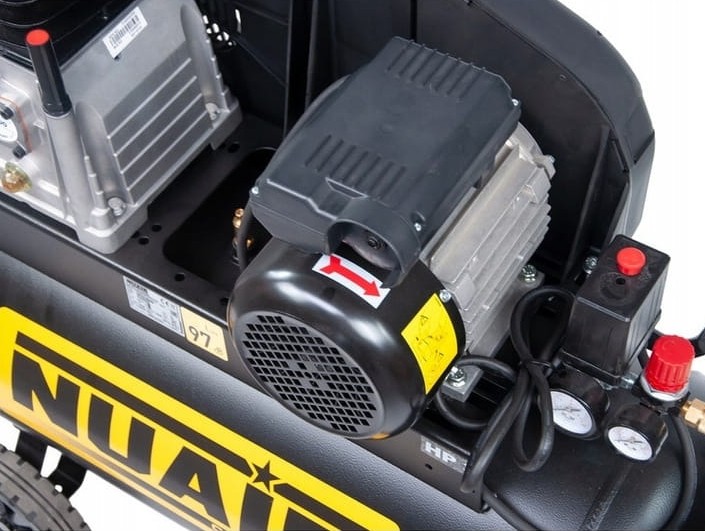

MOTOR
POWER: 3.0 Hp / 2.2 kW
SPEED: 1570 RPM
VOLTAGE: 400 V / 50 Hz
CURRENT – START (Ir): 15 A
CURRENT – OPERATION (Iz): 4.9 A
FUSE: 6.3 A

PUMP
MODEL: B2800B
NUMBER OF CYLINDERS: 2
STAGES: 1
SOUND POWER LEVEL Lwa: 96 dB
MEASURED SOUND POWER LEVEL Lwa m: 95 dB

DIMENSIONS
PACKAGING (WxDxH): 1030 × 440 × 850 mm
