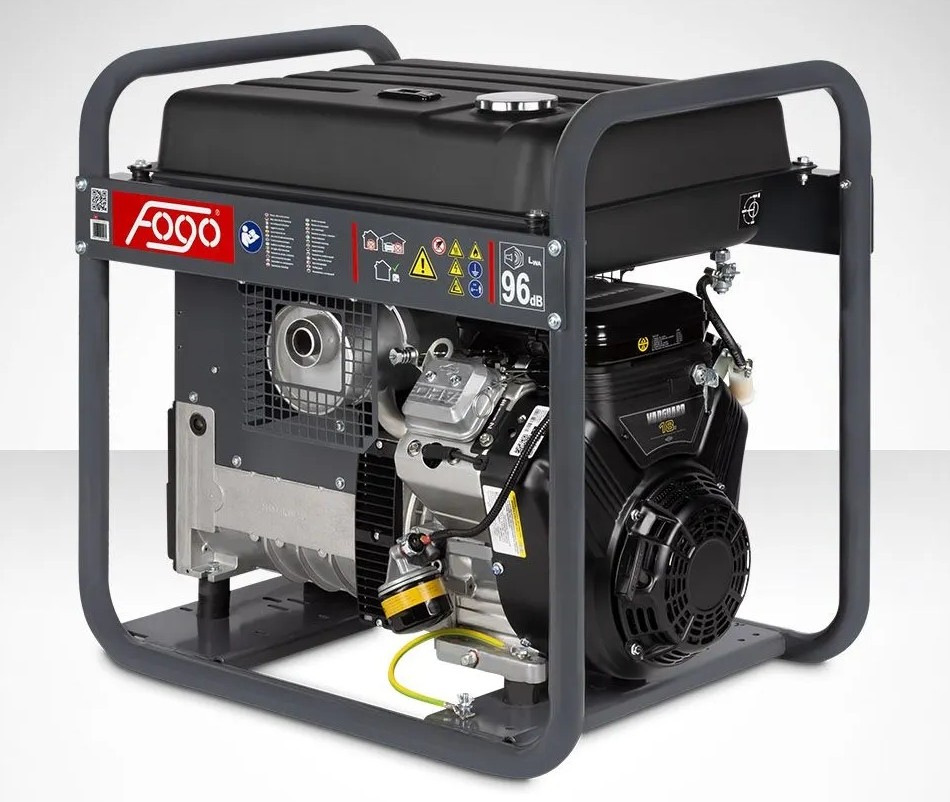

Agregat prądotwórczy FOGO FV13000TE

FOGO portable generators are reliable and efficient power sources, designed to perform in demanding conditions. This series is distinguished by its durable construction, practical solutions, and proven reliability backed by quality certificates. Built with high-class components, they ensure a long service life and trouble-free operation. Thanks to their compact dimensions and mobility, FOGO generators can be easily transported to any location – even with a passenger car.

Key Advantages

• exceptional durability and robust design

• reliable synchronous alternator

• electric starter for easy operation

• Briggs & Stratton Vanguard 18 HP petrol engine

• copper windings and reinforced electrical system

• digital DVR voltage regulator

• one single-phase socket (16 A) and one three-phase socket (32 A)

• operating hours counter

• overload protection and oil pressure sensor

• silencer with exhaust hose connection option

• enlarged fuel tank for extended runtime

The FV13000TE is a portable power generator with a rated output of 9.2 kW / 11.5 kVA (maximum output 10.0 kW / 12.5 kVA), designed for three-phase installations. It is powered by a Briggs & Stratton Vanguard 18 HP petrol engine with 570 cm³ displacement and an electric starter. The unit belongs to the DVR series with a digital voltage regulator, making it suitable for powering sensitive equipment such as computers, welding machines, lighting systems, or electric furnaces.

The generator is equipped with a synchronous alternator with IP23 protection, resistant to accidental contact and water spray at angles up to 60°. It includes one single-phase outlet (16 A) and one three-phase outlet (32 A). Standard features also include overload protection, oil pressure sensor, operating hours counter, and an enlarged 45 L fuel tank for long operation without refueling.

Technical Specifications:

• Frequency: 50 Hz

• Voltage: 400 / 230 V

• Power 3~ max./rated: 12.5 kVA / 11.3 kVA (cos φ 0.8)

• Rated current 3~: 16.4 A

• Power 1~ max./rated: 7.7 kW / 6.5 kW

• Rated current 1~: 28.3 A

Engine

• Brand: Briggs & Stratton

• Model: Vanguard 18 HP (3564)

• Displacement: 570 cm³

• Cooling: Air

• Cylinders: 2

• Cycle: 4-stroke

• Oil sump: 1.7 L

• Starting system: Manual + electric starter

• Fuel: Petrol

• Fuel tank: 45 L

• Fuel consumption (at 75% load): 4.5 L/h

• Noise level: 96 dB(A)

Dimensions & Weight

• Length: 790 mm

• Width: 580 mm

• Height: 765 mm

• Weight: 130 kg

Standard Equipment

• AVR (Automatic Voltage Regulation)

• 400 V 32 A socket

• 230 V 16 A socket

• Overload protection

• Oil pressure sensor

• Battery

• Silencer with exhaust hose connection

• Hour meter
