Kompresor olejowy NUAIR B3800B/150 CM3 150L 10 bar 390 l/min 230V

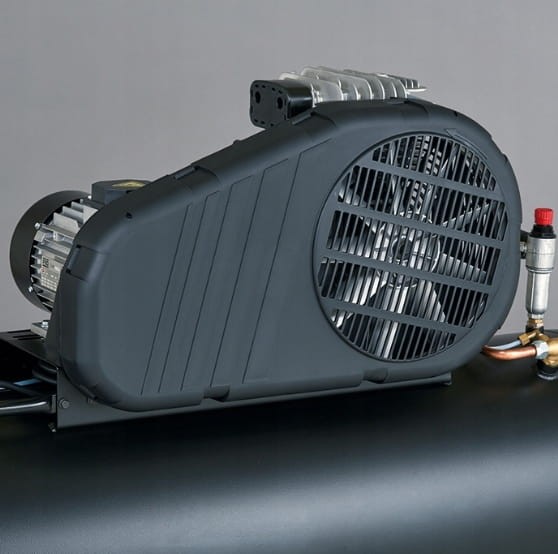

High-performance compressor equipped with a robust B3800B belt-driven pump mounted on a 150 L tank. The unit delivers stable pressure up to 10 bar and efficient operation in an S3/75% duty cycle. Thanks to its compact design, transport handles, and durable wheels, the compressor is easy to move around the workspace. It works perfectly with a wide range of pneumatic tools, ensuring reliable performance in temperatures from 5 to 40°C.

TECHNICAL DATA

GENERAL

• Tank capacity: 150 L

• Type: oil-lubricated

• Maximum pressure: 10 bar

• Duty cycle: S3/75%

• Operating temperature: 5–40 °C

• Input capacity: 390 L/min

• Output capacity: 333 L/min

ENGINE

• Power: 3.0 Hp / 2.2 kW

• Speed: 1100 rpm

• Voltage: 230 V / 50 Hz

• Current consumption – start (Ir): 38 A

• Current consumption – operation (Iz): 13.5 A

• Protection: 15 A

PUMP

• Model: B3800B

• Number of pistons: 2

• Number of compression stages: 1

NOISE LEVEL

• Sound power level Lwa: 97 dB

• Sound power level Lwa m: 95 dB

DIMENSIONS

• Packaging (L×W×H): 1310 × 430 × 1030 mm

WEIGHT

• Gross: 90 kg
