Kompresor olejowy NUAIR B3800B/200 CT4 200L 10 bar 480 l/min 400V

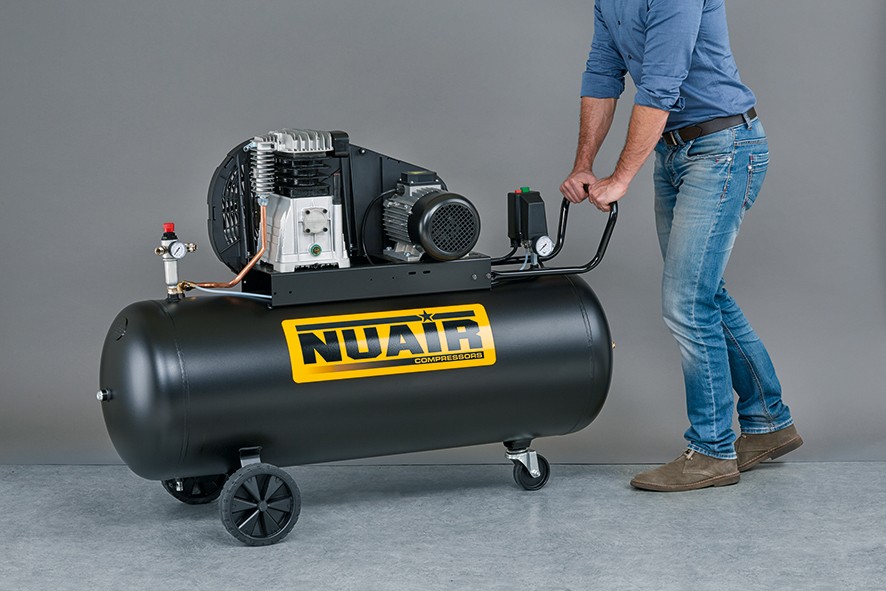

Oil compressor with a large 200 L tank, equipped with a robust B3800B pump featuring two pistons and a belt drive. The device provides stable pressure up to 10 bar and efficient operation in an S3/75% duty cycle, working reliably in temperatures from 5 to 40 °C. Thanks to its ergonomic design, large wheels, and convenient handle, transporting and positioning the compressor in the workspace is simple and easy. It works perfectly with a wide range of pneumatic tools, ensuring smooth and efficient operation.

Advantages:

• Lubricated B3800B pump with durable pistons

• Intuitive, user-friendly control elements

• Efficient cooling thanks to the pump rotor design

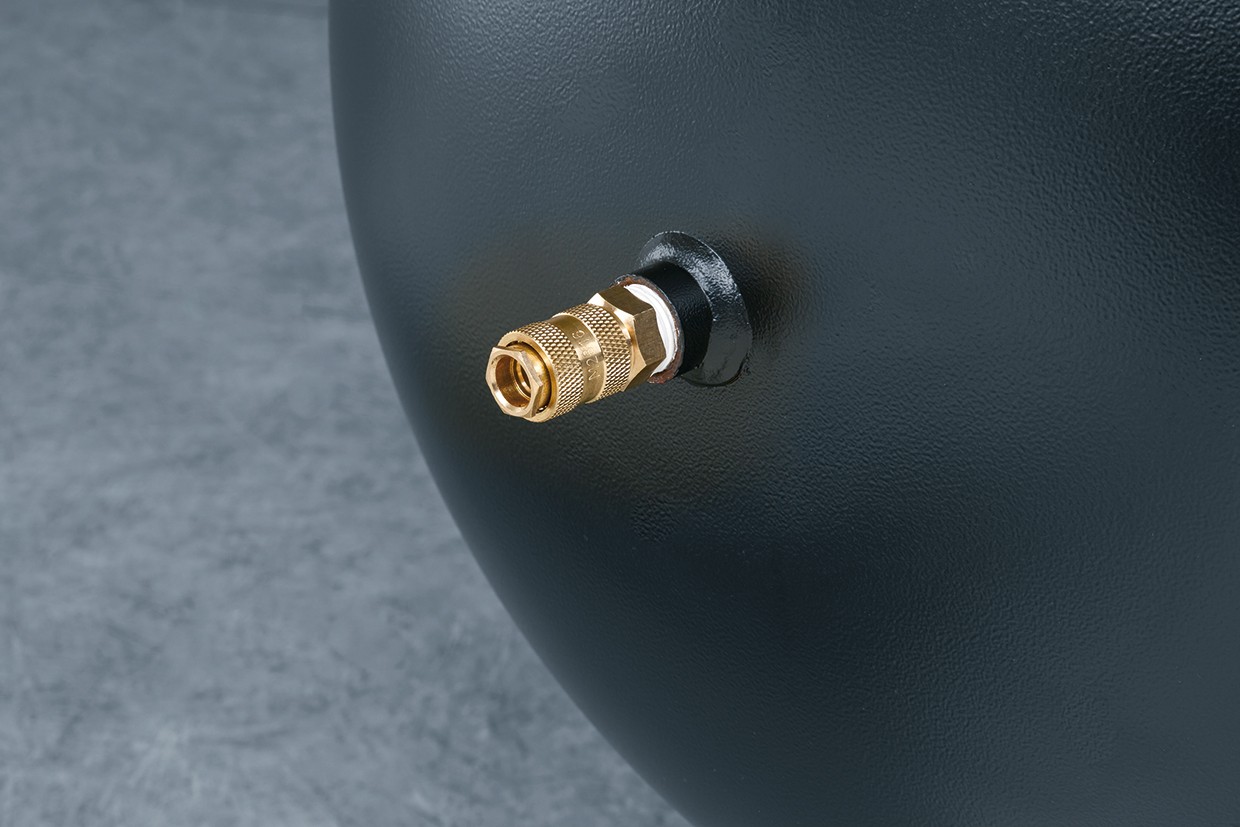

• Second quick coupling on the tank for convenient tool connection

• Large wheels and ergonomic handle for easy transport

TECHNICAL SPECIFICATIONS

GENERAL

• Tank capacity: 200 L

• Type: oil-lubricated

• Maximum pressure: 10 bar

• Duty cycle: S3/75%

• Operating temperature: 5–40 °C

• Inlet capacity: 480 L/min

• Outlet capacity: 405 L/min

MOTOR

• Power: 4.0 Hp / 3.0 kW

• Speed: 1400 rpm

• Voltage: 400 V / 50 Hz

• Current – start (Ir): 21 A

• Current – operation (Iz): 6.3 A

• Protection: 7.5 A

PUMP

• Model: B3800B

• Number of pistons: 2

• Number of compression stages: 1

NOISE LEVEL

• Sound power level Lwa: 97 dB

• Sound power level Lwa m: 95 dB

DIMENSIONS

• Packaging (L×W×H): 1440 × 480 × 1130 mm

WEIGHT

• Gross: 116 kg
